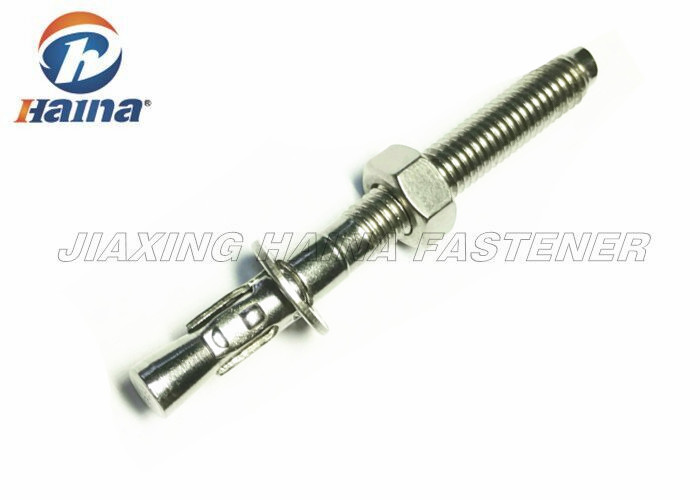

Wall Concrete Passivation Finish Stainless Steel/carbo steel Wedge Anchor
1. Product Description
A wedge anchor is a type of specialty fastener used to attach objects to concrete or masonry structures. They may be used to secure a piece of artwork to a brick wall, hang ductwork or plumbing pipes from a ceiling, or bolt an item into the floor. Wedge anchors may also be known as anchor bolts or expansion bolts in some areas.
The standard wedge anchor consists of two components that are joined together by the manufacturer. A standard metal bolt makes up the base of the wedge anchor, and is surrounded by a metal or thermoplastic sleeve. Once an installer inserts the bolt into a masonry wall or floor, the base of the anchor slides up inside the sleeve. A rounded or conical tip on the end of the base forces the walls of the sleeve out to the side, where they grip the interior of the concrete or stone wall to form a secure hold.
Installation
Drill hole in base material to your specified embedment depth. Debris from drilling must not interfere with the required embedment depth, the hole that you drill needs to be cleaned out with compressed air. Alternatively if the concrete thickness allows you can drill hole deep enough to accommodate the required embedment depth and the dust/debris from drilling. Assemble anchor so the nut is flush with the top of the anchor, place anchor into position through fixture and drive into the hole until the nut and washer are tight against the fixture.
2. Specification
| Material | Steel | Stainless | Specification | Steel | Stainless |
| Stud | AISI C12L14 | 303, 304, 316 | ASTM | A108, A510 | A276, A479 |
| Clip | AISI C1010-1018 1037 | 304 316 | Federal | FF-SS325, GROUP II TYPE 4, CLASS 1 | A581, A582 FF-S-325 |
| Washer | AISI C1010-1018 | TYPE 18-8 316 | Plating | ZINC QQ-Z-325C | GROUP II |
| Nut | Low Carbon Steel ASTM A 563, GRADE A | 304, 316 | Galvanized | TYPE II CLASS 3 ASTM A 153 CLASS C | TYPE 4 CLASS 1 PASSIVATED |
| Anchor Size | Hole Size | Min. Embedment | Std. Thread Length |
| 1/4” all sizes | 1/4” | 1-1/8” | 3/4” |
| 3/8” x 2-1/4” | 3/8” | 1-1/2” | 7/8” |
| 3/8” | 3/8” | 1-1/2” | 1-1/8” |
| 1/2” all sizes | 1/2” | 2-1/4” | 1-1/4” |
| 5/8” all sizes | 5/8” | 2-3/4” | 2” |
| 3/4” all sizes | 3/4” | 3-1/4” | 2” |
| 7/8” | 7/8” | 3-7/8” | 2-1/4” |
| 1” | 1” | 4-1/2” | 2-1/4” |
| 1-1/4” | 1-1/4” | 5-1/2” | 3-1/4” |
3.Application
Wedge anchor extends into the tube sheet bore tube ends rolling leaving the tube wall expansion, plastic deformation, the diameter increases, the tube head completely fit the wall of the hole in the tube plate, tube sheet and forcing the elastic deformation . When the expander is removed, the elastic deformation of the tube plate desire restitution, and plastic deformation of the pipe end can not be recovered, the result is the tube plate and hugged the tube end, so as to achieve both the seal does not leak and are firmly connected purposes .
Suitable for concrete and dense natural stone, metal constructions, metal profiles, base plate, a support plate, brackets, railings, windows, walls, machines, girders, beams, brackets, and so on.
4. Advantages
1. Good after sales service. Any small problem happening will be solved at the most prompt time;
2. Many years of export experience;
3. Specifications list is available upon your request
4. Welcome to send enquiry, we will reply soon.
5. Prompt shipment with professional documents
6. Custom packing, with photo before shipment
7. High quality and competitive price.
