A2-70 Stainless Steel Sleeve Anchor Bolts For Structural Connection

Jiaxing Haina Fastener Co.,Limited
Contact Now

A2-70 Stainless Steel Sleeve Anchor Bolts For Structural Connection

Brand Name : HNF

Model Number : DIN

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1000PCS

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 TON PRT MONTH

Delivery Time : 5-15DAYS

Packaging Details : CARTON +PALLET

Material : stainless steel

Application : Fix stone anchor to the wall

Diameter : 3/8"

Finish : PLAIN

OEM : Available

Minimum Embedment : 1-5/8"

Type : Sleeve Anchor

Packaging details : small box/poly bag + carton + pallet

Standard : ISO, DIN, ANSI, GB, non-standard and more

Grade : A2

Contact Now

A2-70 Stainless Steel Sleeve Anchor Bolts For Structural Connection



1. Product Description



Sleeve anchors are inserted into pre-drilled holes in masonry materials where they expand for a secure fit, anchoring objects to the concrete or brick.

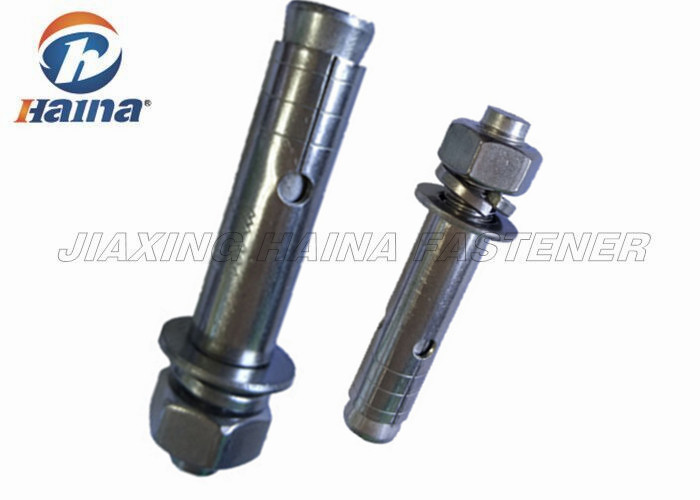

The stainless steel sleeve anchor consists of a solid metal screw or stud with a cone-shaped tip that flares out to the sides. A stainless steel sleeve wraps around the outside of the stud, allowing the tip of the stud to extend out the end of the sleeve. A washer and nut sit at the top of the bolt for adjustment and installation. Once the stainless steel sleeve anchor has been inserted into concrete, installers turn the nut to pull the stud up into the sleeve.



Stainless steel sleeve anchor is a type of fastener used to secure objects to a concrete or masonry structure. Stainless steel sleeve anchors can be used to join two or more concrete structures, or to fasten an object such as a shelf to a brick wall. Sleeve anchors are also referred to as two-step bolts or anchor bolts in some areas.



2. Specification



Anchor bolt is conisit of bolt , sleeve , nuts and washer , on of end is with thread and another is bunchy point , the anchor bolt is used to attach the workpieces or structure to concrete and widely used on various fileds .

Standards

1.DIN       2. ISO        3. BSW          4. GB            5.JIS

Finish options 1) Zinc .2) Nickel 3) Oxidization .4) Polish .5) Paint .6) bronze .7) brass .
Head Type Hex
Point Type Self-tapping
Fitting instructions Quick to install
Class Anchor
Sub Class Sleeve
Package box ,carton, pallet
Fixings supplied Fixings supplied
Diameter 3/8"
Length 3"



3. Application



Concrete Sleeve Anchors' design allows them to anchor into concrete, brick and block. Sleeve anchors work by inserting them into a hole drilled into concrete. Turning the nut pulls the working end of the sleeve anchor up through the sleeve, expanding and anchoring itself securely in the concrete, brick or block.

Sleeve anchors consist of a threaded plow bolt which has a cone shaped end. tubular expansion sleeves are assembled over plow bolt and butted against cone. Used for making heavy-duty attachments in solid concrete, hollow block, and brick.

1. Concrete,

2. masonry,

3. block,

4. brick anchoring,

5. mounting baseplates,

6. fixtures,

7. structural connections

8. Furniture . sofa , glass table , steel seat and table and decorative lighting etc .

9. Building . window and door , metal floor, steel structure and building beam etc



4. Advantages



1. Good after sales service. Any small problem happening will be solved at the most prompt time;



2. Many years of export experience;



3. Specifications list is available upon your request



4. Welcome to send enquiry, we will reply soon.



5. Prompt shipment with professional documents



6. Custom packing, with photo before shipment



7. High quality and competitive price.



5. More pictures



A2-70 Stainless Steel Sleeve Anchor Bolts For Structural Connection
