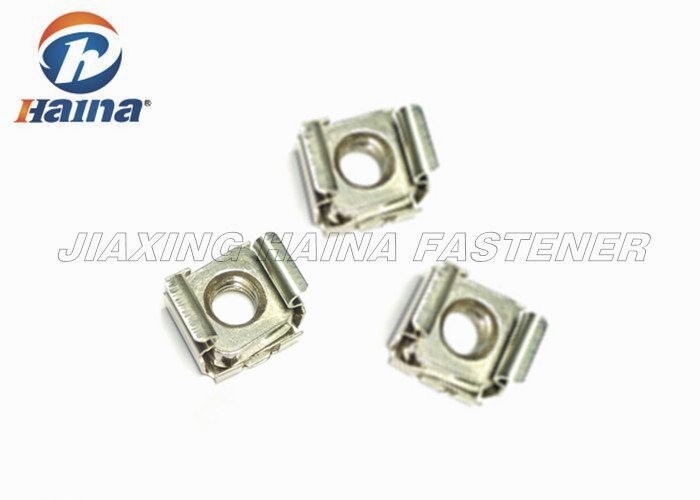

High Intensity M5 Cage Stainless Steel 304 316 Square Cage Nut
1. Product Description
Cage nuts having threaded fastener effects of high intensity, with a special tool to put it into the square hole in advance of the withdrawal of the tool so that it is fixed to the metal or other plate, install quickly and easily detachable from the new location, also fixed tilt, also called square holes cage nuts cage nuts, some people called floating nut. And they have different names, but a special kind of nut. Its shape is square Gerry has a square nut, square nut through hole, there is a thread.
Using cage nuts provides several benefits over threaded holes. It permits a range of choice of nut and bolts size (e.g. metric vs imperial) in the field, long after the equipment has been manufactured. Second, if a screw is over-tightened, the nut can be replaced, unlike a pre-threaded hole, where a hole with stripped threads becomes unusable. Third, cage nuts are easy to use on materials too thin or soft to be threaded.
The nut is usually slightly loose in the cage to allow for minor adjustments in alignment. This reduces the likelihood that the threads will be stripped during equipment installation and removal. The dimensions of the spring steel clip determines thickness of the panel to which the nut may be clipped. In the case of square-hole cage nuts, the clip dimensions determine the range of hole sizes to which the clip will securely hold the nut. In the case of slide-on cage nuts, the clip dimensions determine the distance from the panel edge to the hole.
2. Specification
| d | s | n | h | a |
| M4 | 12.5mm | 2.5mm | 9.35mm | 7.5mm |
| M5 | 12.5mm | 2.5mm | 9.35mm | 7.5mm |
| M6 | 12.5mm | 2.5mm | 9.35mm | 7.5mm |
| M8 | 16.5mm | 2.5mm | 12mm | 11.5mm |
| M10 | 16.5mm | 2.5mm | 12mm | 11.5mm |
| Item name | Stainless steel M6 cage nut |
| Size | M6-M12 |
| Material | stainless steel |
| Surface | PLAIN |
| Certification | ISO9001 |
| OEM | Welcome |
| MOQ | 5000pcs |
| Leadtime | 5-15days after receiving the payment |
| Payment terms | TT ( for amount more than USD3000, 30% deposit, the balance against BL copy) |
| With pan head machine screw and plastic cup washer |
3. Application
A cage nuts common use for mounting equipment in square-holed 19-inch racks , with 0.375 inches (9.5 mm) square-hole size. it has four common sizes: UNF 10–32 and, UNC 12–24 are generally used in the United States; elsewhere, M5 (5 mm outside diameter and 0.8 mm pitch) for light and medium equipment and M6 for heavier equipment.
Though some modern rack-mount equipment has bolt-free mounting compatible with square-hole racks, many rack-mount components are generally mounted with cage nuts.
1, only one side of the plate installation, suitable for rail and assembly site; there are some of the sheet metal industry enterprise products, such as racks, cabinets, controllers.
2, with high bearing capacity.
4. Advantages
As a family owned business, our goal has always been to provide customers with unmatched personalized service and support. Knowledge gained as both an applicator and a chemical manufacturer gives us extra insight and control over how to meet even the toughest requirements. Our processing divisions deal directly with regional customers and pride themselves on their quality and delivery.
As a fully integrated company, we do it all. We make the materials, build the application equipment and handle all aspects of operations from formulating custom chemical compositions and coating fasteners to providing advanced in-line inspection, packaging and delivery services. Find out how we can assist you on your next project.
5. More pictures
