Gr 6.8 M20 X 130 Zinc Plated Heavy Duty Anchor Bolt With Eye Head
1.Product Description
The Sleeve Anchor is one type of the anchor bolts. The screws of the anchor have been manufactured under the DIN standard and their quality-hardness is 6.8(60 to 80 kg./mm). The wahser is wide, which provide a bigger allowance for pieces or structures to be fastened. While performing the fixing of the anchor the plastic part or ring gets deformed, which fills and blocks the hole of the piece or structure to be fastened. This plastic absorbs material irregularities and it is a useful damp-proof piece to protect the inner mechanism of the anchor. And any screw head available as your requirement. The corn has some grooves in order to prevent the anchor from loose or spin movement after fixing into the hole and ready to expansion. High retaining power and can be removed easily. When tightening the nut and screw the conical section is pulled into the anchor shells expanding it and weding it inside the anchor base. which offering heavy duty for fastening. The materials are stainless steel, carbon steel and other metal materials. The anchor body can be used by hex bolt, hook bolt and eye bolt. Application for fixing base material: plasterboard, gypsum fiber board, fiber cement board, light wood particleboard, hardboard etc. To install, Firstly, drill a hole and clean out hole of all debris, then use setting tool and hammer to drive plugin.
Different size,type and material anchor are available in stock, to reach the requirement of different customer and application.
2. Specification
| Product Dimensions | M20 |
| Anchor Body | Hex bolt |
| Head Type | Eye Ring |
| Shell Type | Sleeve Body |
| Free Sample | Available, shipping is on customers' charge |
| Thread type | UNC Thread |
| Advantages | Corrosion Resistance,High Tensile, offer high holding power |
Installation Data
| Specification | Anchor Length | Drill Dia. | Min. Hole Dep. | Max. fixture Thickness | Pipe Length | Pull Out Load |
| M20 | 130mm | 25mm | 105mm | 25mm | 100mm | 4800kgs |
3.Application
General Fastening applications where need high strength and superior corrosion resistance. Application for fixing base material: plasterboard, gypsum fiber board, fiber cement board, light wood particleboard, hardboard etc. To fix the lamp, book shell, switch, crane kitchen, curtain chute, picture frame,cable trench and etc.
4.Advantages
Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance. Easy to install with proper tools, easy to move and replace the equipment. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime. All types of anchors have in stock! Short delivery time, high quality good packaging.
5.More pictures
Product Tags:
|
|

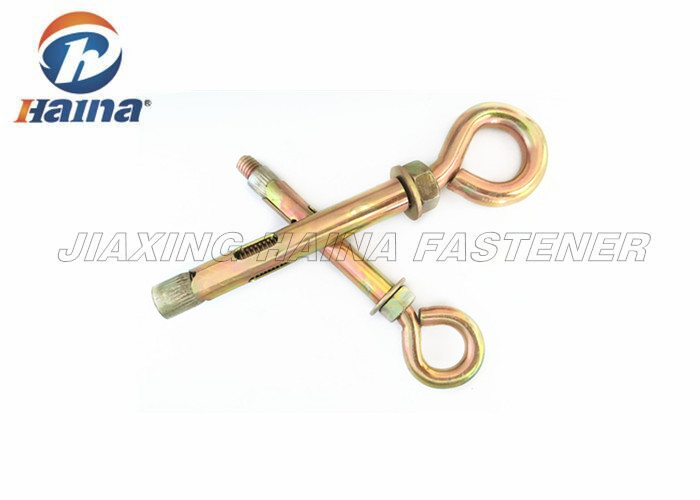

Gr 6.8 M20 X 130 Zinc Plated Heavy Duty Anchor Bolt With Eye Head Images
|
