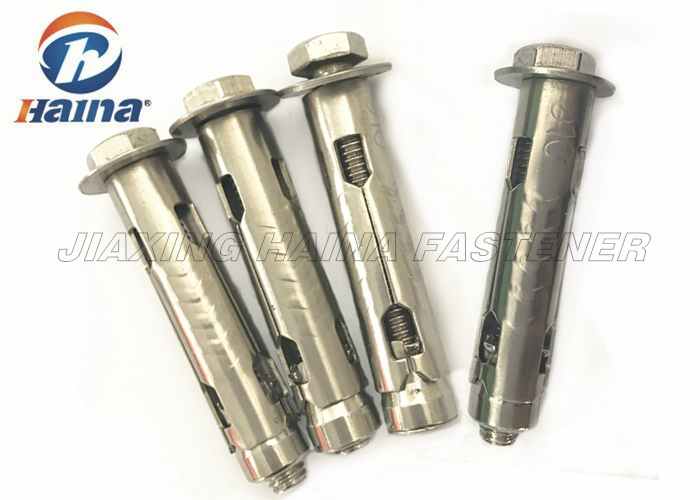

Customized Stainless Steel A2-70 304 Sleeve Anchor Bolt with Washer
Description
Sleeve anchors are also called expansion bolts, expansion anchors. The sleeve anchors are the most widely used expansion anchors because they can be used in a variety of base materials, such as concrete, brick, and block. They are available in a wide variety of diameters, lengths, and head styles. The available head styles are acorn, hex nut, flat, countersunk, and round head.
These anchors are available in stainless steel for outdoor, wet environments, and zinc plated for indoor, dry environments. They come preassembled, so they are ready for immediate installation. Sleeve anchors are great for light to heavy duty fastening.
When install the sleeve anchors, the anchor diameter equals hole diameter.
Available in hex head and six other head styles
.
We have 1/4 - 3/4" diameter up to 6-1/4" length
.
Zinc plated carbon steel and 304 stainless steel
, 316 stainless steel.
Provides full 360° hole contact over large area and reduces concrete stress
.
Heavy-loading capacity
.
Preassembled for faster, easier installations
.
Dynabolt can be installed through object to be fastened
.
Sleeve design improves holding power
.
No pre-spotting of holes necessary.
Specification
| Product Name | Customized Stainless Steel A2-70 304 Sleeve Anchor Bolts Sleeve Anchors with Washer |
| Material | Stainless steel,204, 316. carbon steel |
| Color | Plain, silver |
| Standard | DIN GB ISO JIS BA ANSI |
| Grade | SUS201, SUS304, SUS316, A2-70, A2-80, A4-80, 4.8 6.8 8.8 10.9 12.9 |
| Feature | Rustless ,Eco-friendly ,Corrosion resistant |
| Thread | UNF UNC |
| Tension | Shear |
| Anchor Size | Embedment | Average Ultimate
Load (Pounds) | Average Ultimate
Load (Pounds) |
1/4 x 1 3/8
1/4 x 2 1/4
5/16 x 1 1/2
5/16 x 2 1/2
3/8 x 1 7/8
3/8 x 3
3/8 x 4
1/2 x 2 1/4
1/2 x 3
1/2 x 4
1/2 x 6
5/8 x 2 1/4
5/8 x 3
5/8 x 4 1/4
5/8 x 6
3/4 x 2 1/2
3/4 x 4 1/4
3/4 x 6 1/4 | 1 in.
1 3/4 in.
1 in.
2 in.
1 1/4 in.
2 1/2 in.
3 1/4 in.
1 1/2 in.
2 1/4 in.
3 in.
4 in.
2 in.
2 1/2 in.
3 1/2 in.
4 1/2 in.
2 in.
3 1/2 in.
5 in. | 1505
2160
2424
2945
2114
3988
3639
4277
5770
5961
6513
6216
6661
9111
9991
6568
8910
11408 | 1920
1897
2555
3414
4218
4638
4694
5356
5653
7318
7690
7816
7331
7978
7870
10750
14514
13199 |
Application
The sleeve anchor is suitable for concrete and dense stone, high strength cement, metal constructions, metal profiles, base plate, a support plate, brackets, railings, windows, walls, machines, girders, beams, brackets, and so on. It includes a hex bolt with A2-70 and a flat washer to make the installation more firm.
Installation
First. gather tools and materials. Then plan the hole. Second ensure the depth. Third. Drill the hole and clean it. The last step is to Install the sleeve anchor.
Advantages
1. Applying various anchor bolts, in stainless steel and carbon steel.
2. Anchors expert
3. Top quality
4. Reasonable price
5. Rich export experience
6. Strict inspection.
7. Third part inspection.
